User-driven distributed control of collective assembly using mobile, networked miniature robots
Following the "Rolling microfunctions" workshop between ECAL, fabric | ch and SWIS-EPFL laboratory about swarm networked robotics, Dr Julien Nembrini (in charge of the project for Swiss Federal Institute of Technology) made the following post on SWIS laboratory research webpages:
"User-driven distributed control of collective assembly using mobile, networked miniature robots
If swarm systems are to be used in human environments, a protocol for human-swarm interaction has to be defined to enable direct and intuitive control by users. Up to now research has concentrated on the difficult problem of controlling the swarm, whereas the interaction problem has been largely overlooked.
In collaboration with interaction design researchers, the project developed a demonstrator consisting in a fleet of mobile "lighting" robots moving on a large table, such that the swarm of robots form a "distributed table light". In the presence of human users, the group of robots quickly aggregates to form together a lamp whose shape and function depends on the users' positions and behaviors.
The whole set-up consists in a collection of small robots moving and interacting on a table, a camera position tracker and a human-computer interface. The swarm-user interaction is designed as follows: the target configuration of the aggregate is controlled through crude position and attitude tracking of users around the table. User tracking and robot tracking are integrated in software and configuration information as well as positioning information are then sent to the robots.
Considering the specific task of ordered aggregation as benchmark, the project studies a simple algorithm able to control the geometry of an aggregate consisting of embedded, real-time, self-locomoted robotic units endowed with limited computational and communication capabilities. The robots only use infrared proximity sensors and wireless communication.
In this case, the aggregation problem being human centered, time-to-completion becomes critical. The user cannot accept to wait too long for the robots to aggregate. The system has to react quickly to changes in users attitude. This is the reason for defining a hybrid algorithm where global positionnal information is sent to the robots, which then accordingly choose their actions in an autonomous manner.
The project results from a collaboration with designers from Ecole Cantonale d'Art de Lausanne"
Posted by patrick keller at 14:03
EPFL - SWIS - Swarm-Intelligent Systems Group
The Swarm-Intelligent Systems Group of the EPFL (Swiss Federal Institute of Technology), Prof. Alcherio Martinoli and Post-doctorate assistant Julien Nembrini have joined the Variable environment/ project and worked around Workshop#4 between June and December 2006.
Prof. Martinoli's laboratory belongs to the School of Computer and Communication Sciences, Institute of Communication Systems of the EPFL.
SWIS laboratory is a member of the Mobile Information & Communication Systems, a National Center of Competences in Research.
The area of interest of the laboratory is in swarm-intelligent collective robotics.
Within the context of this collaboration, we will work with the E-PUCK (see img below) platform. The goal is to develope a human - swarm bots collaboration with a minimal spatial & lighting function for the bots.
Posted by patrick keller at 15:10
Particle filter-based camera tracker fusing marker and feature point cues
The paper entitled:
Particle filter-based camera tracker fusing marker and feature point cues
has been accepted for oral presentation in the IS&T/SPIE Electronic Imaging Symposium 2007. This article is part of the Proceedings of the Visual Communications and Image Processing conference.
This paper presents a video-based camera tracker that combines marker-based and feature point-based cues within a particle filter framework. The framework relies on their complementary
performances. On the one hand, marker-based trackers can robustly recover camera position and orientation when a reference (marker) is available but fail once the reference becomes unavailable. On the other hand, filter-based camera trackers using feature point cues can still provide predicted estimates given the previous state. However, the trackers tend to drift and usually fail to recover when the reference reappears. Therefore, we propose a fusion where the estimate of the filter is updated from the individual measurements of each cue. More precisely, the marker-based cue is selected when the reference is available whereas the feature point-based cue is selected otherwise. Evaluations on real cases show that the fusion of the two approaches outperforms the individual tracking results.
Posted by david.marimon at 16:37
CV Lab - EPFL / Softwares
Pascal Fua's CV Lab from EPFL has released some free softwares for camera calibration in the context of pattern regognition (markers) for AR Application. Could be interesting to merge these functionalities with our planed and open source XjARToolkit in the future.
Softare download area on the CV Lab's web pages
Posted by patrick keller at 17:23
Fusion of marker-based tracking and particle-filter based camera tracking
We have developed a novel a video-based tracker that combines a marker-based tracker and a particle filter-based camera tracker. The framework relies on their complementary performance. We propose a fusion where the overall estimate is selected among the individual estimates. More precisely, the marker-based tracker is selected when the reference is available whereas the particle filter-based camera tracker is selected otherwise.
Some snapshots of the performance of the fusion tracker in front of:
Marker partially out of the field of view

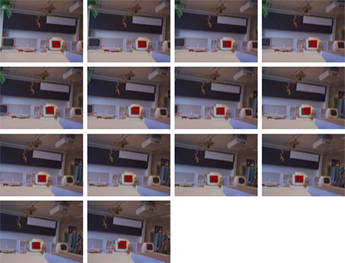

Video input with little illumination
Video input with saturated illumination
Signal Processing Institute
Posted by david.marimon at 11:08
Diploma Project: Robust Feature Point Extraction and Tracking for Augmented Reality
On Tuesday 20th September, Bruno Palacios (Erasmus student coming from UPC-Barcelona) presented his diploma project entitled Robust Feature Point Extraction and Tracking for Augmented Reality supervised by David Marimon and Prof.T.Ebrahimi. This work enhances the already developed AR system using more robust tracking techniques.
Abstract of the report________
For augmented reality applications, accurate estimation of the camera pose is required. An existing video-based markerless tracking system, developed at the ITS, presents several weaknesses towards this goal. In order to improve the video tracker, several feature point extraction and tracking techniques are compared in this project. The techniques with best performance in the framework of augmented reality are applied to the present system in order to prove system’s enhancement.
A new implementation for feature point extraction, based on Harris detector, has been chosen. It provides better performance than Lindeberg-based former implementation. Tracking implementation has been modified in three ways. Track continuation capabilities have been added to the system with satisfactory results. Moreover, the search region used for feature matching has been modified taking advantage from pose estimation feedback. The two former modifications working together succeed in improving system’s performance. Two alternatives to photometric test, based on Gaussian derivatives and Gabor descriptors, have been implemented showing that they are not suitable for real-time augmented reality. Several improvements are proposed as a future work.
Scene augmented with a virtual red square in front of a real monitor (click on image for bigger resolution).
Posted by david.marimon at 17:38
